DEA LIVI sliding gate Kit

LIVI Residential sliding gate operators

Up to 900kg

LIVI is the range of residential sliding gate motors up to 900 Kg, available in 230V and 24V. - See Below

LIVI operators are provided with built-in control board with integrated 433 MHz receiver and limit switches. The operators equipped with control boards of DE@NET technology are completely safety and complies with European Norms EN12453 and EN12445 also in the 230V version, thanks to the presence of the encoder.

Self-locking operator with limit switches
230V versions with encoder for the position management and obstacles detection
Controlled input for external safety devices

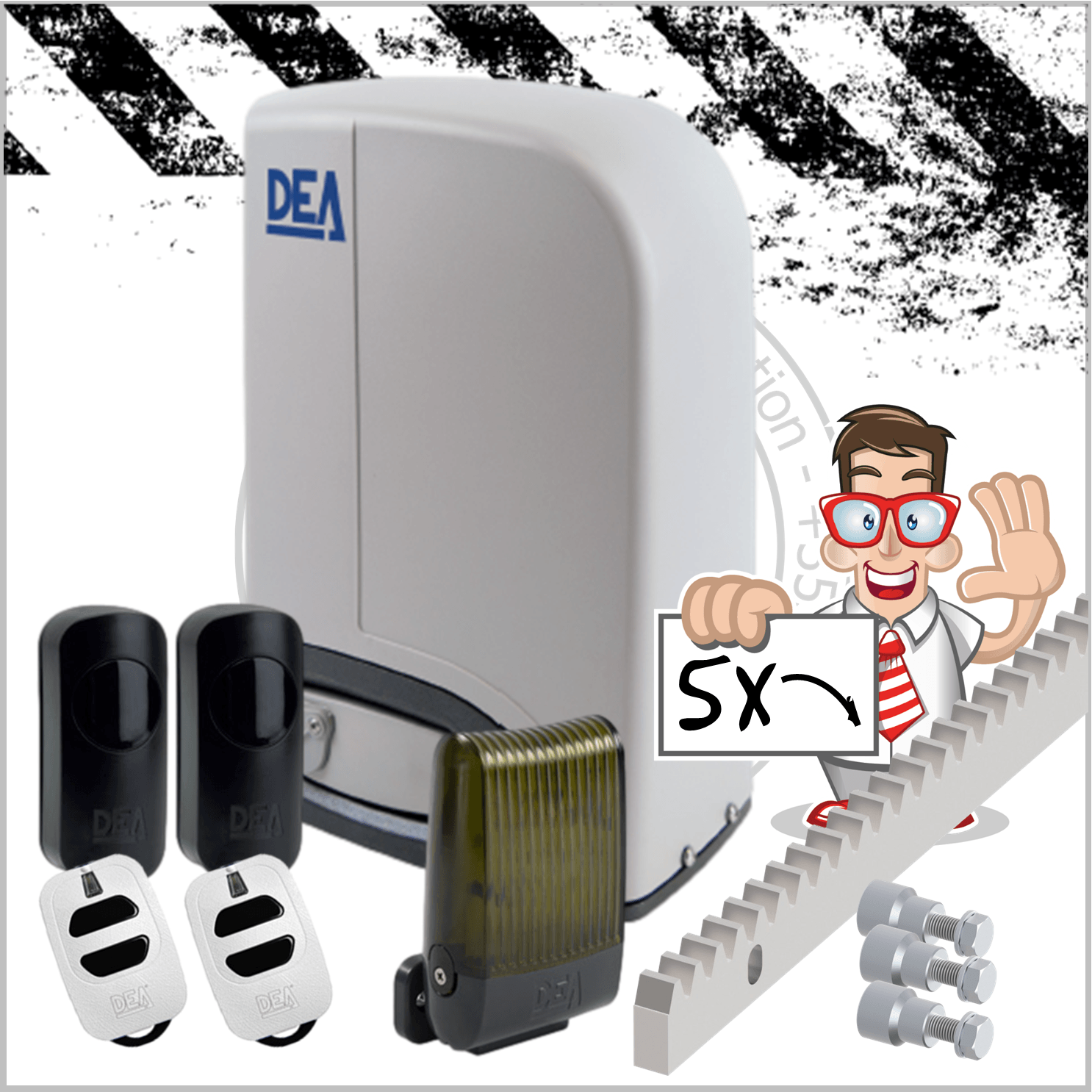

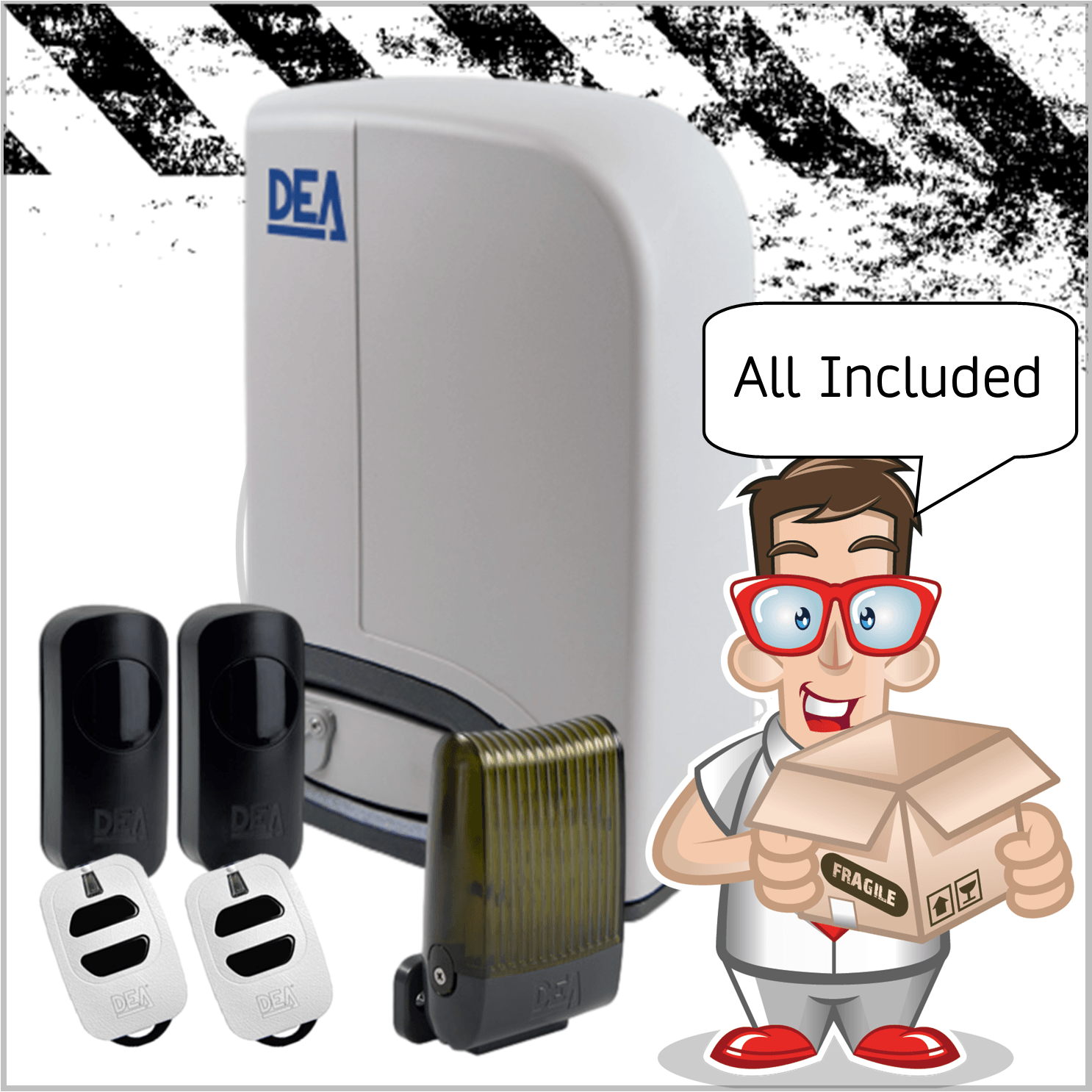

230V KIT - 9NET : Code 615180 (900KG)
Electro-mechanical operator with built-in control panel, limit switches and encoder.

• For Gates up to 900 Kg
• Built-in NET230N control board with 433 Mhz radio receiver integrated
• Motor controlled by encoder for the position management and obstacle detection
• Speed adjustment and slow-down in opening and closing
• This product complies with European Safety Norms EN12453 and EN12445.

24V KIT - 8/24NET/F : Code 615161 (800KG)
Electro-mechanical operator with built-in control panel and limit switches.

• For gates up to 800 Kg
• Built-in NET24N control board with 433 Mhz radio receiver integrated
• Speed adjustment and slow-down in opening and closing
• Anti-crushing safety device
• This product complies with European Safety Norms EN12453 and EN12445.

Other Variations available on request - see link below

Further Information
