FAAC XP 20 D Adjustable photocells

FAAC XP 20 D Adjustable photocells

This photocell is ideal for misaligned/round piers etc

SIMPLICITY AND VERSATILITY OF INSTALLATION

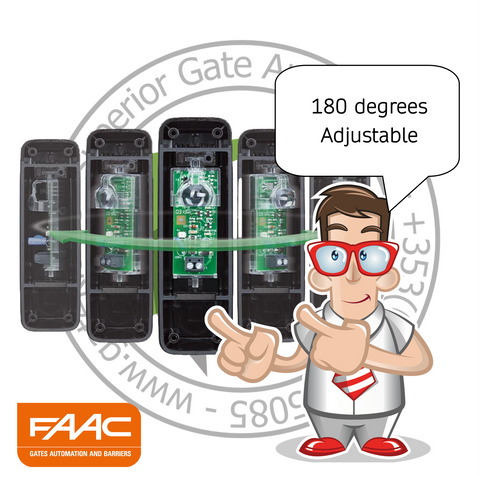

The new XP 20 D photocells, both wall-mounted and column-mounted, allow the mechanical reduction of the beam along the horizontal axis of 180° (-90° +90°) and feature a vertical optical self-alignment function which is particularly useful when the area to protect is not entirely flat.

PERFECT IN ANY ARCHITECTURAL CONTEXT
Extremely compact size: 41 x 130 x 42 mm.
Possibility of cable inlet both from the rear and from the underside of the casing (16 mm) and of column mounting.

SUPERIOR PROTECTION
Mould seal on the casing, so there is no risk of it being removed or fitted incorrectly, thereby ensuring the IP54 protection class.

ACCURATE AND RELIABLE ADJUSTMENT
This photocell is housed in a swivel support fitted with a high-performance lens designed to optimise the efficiency of the beam in any direction.
The swivel support is locked in the desired position thanks to a hard-wearing quick-fit swivel lock (which can be removed with a screwdriver where necessary)
