Sliding Gate Wheel
By IBFM
€48.00VAT of 23% Included In Price
No Price?? - contact us at gatekits@gmail.com for a great deal

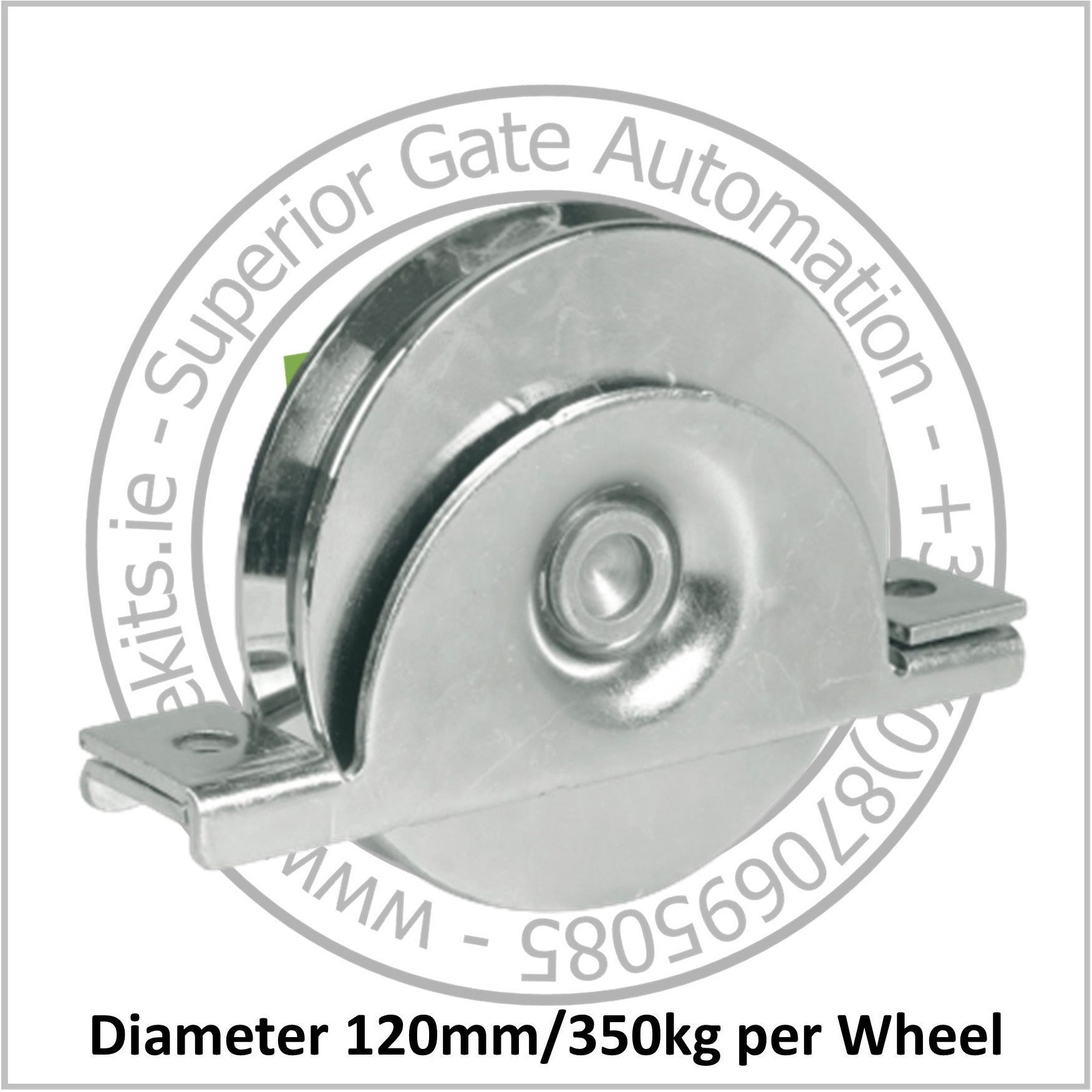

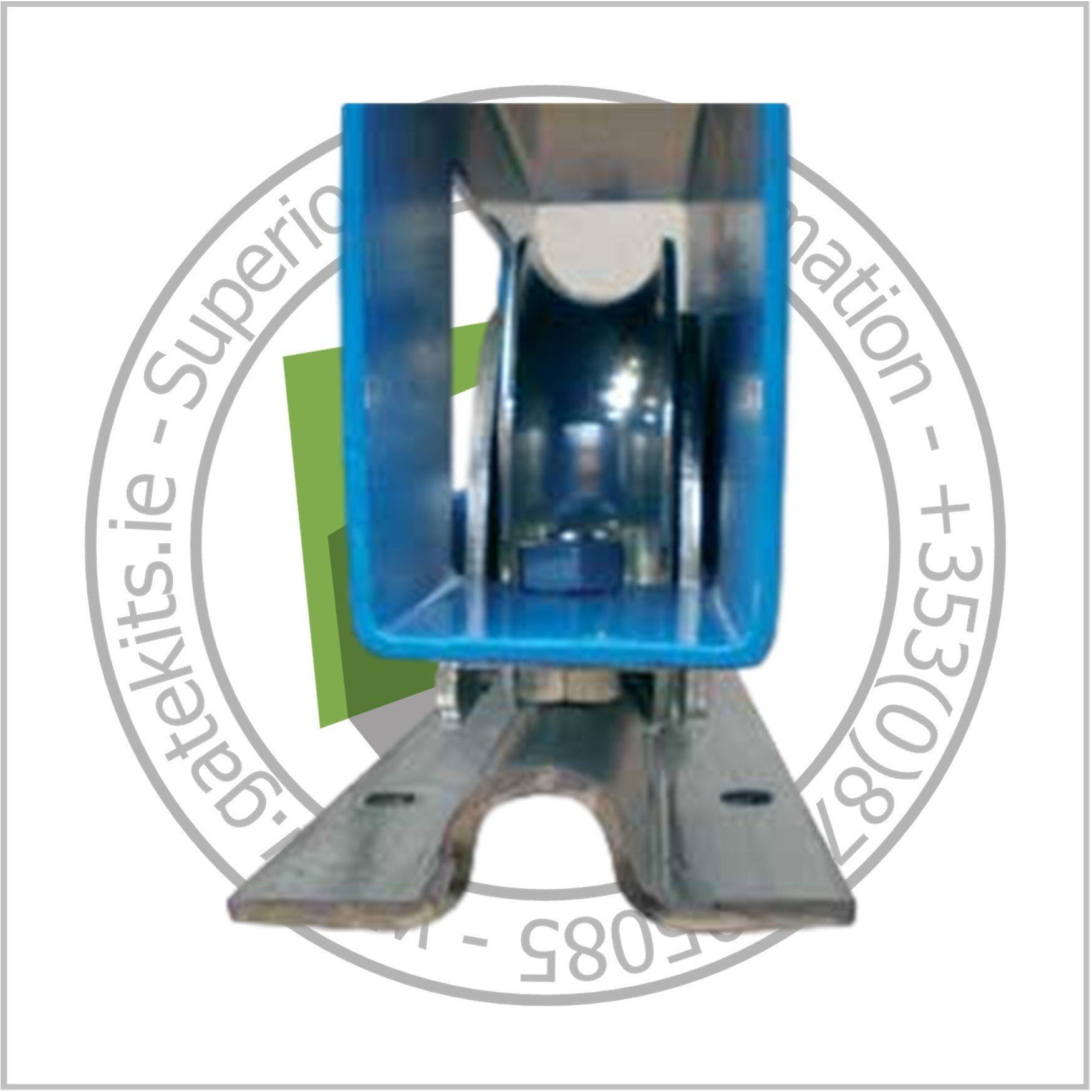

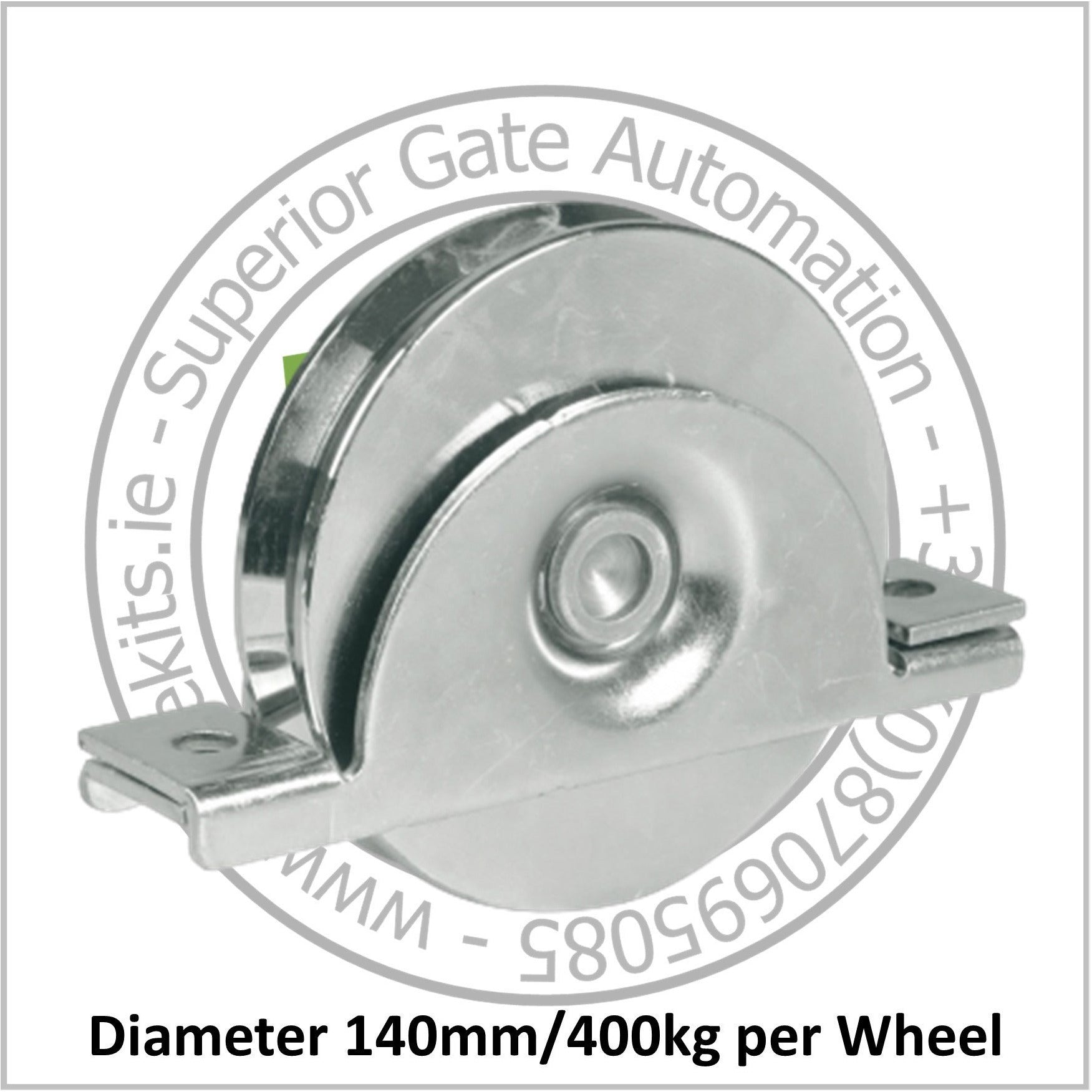

Our Sliding Gate Wheel comes fully galvanised and suit a 20mm round bar with a support bracket.
Capacity between 2 wheels - 500Kg, 700Kg and 800Kg

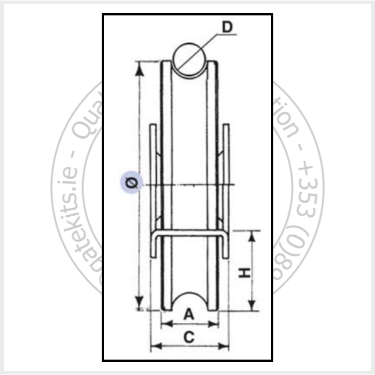

Dimension below are approximations only
| Diameter | A | C | H | D | Cap between 2 Wheels - (Kg) |
| 100mm | 25mm | 34mm | 30mm | 20mm | 500 Kg |
| 120mm | 28mm | 37mm | 39mm | 20mm | 700 Kg |
| 140mm | 28mm | 37mm | 44mm | 20mm | 800 Kg |
